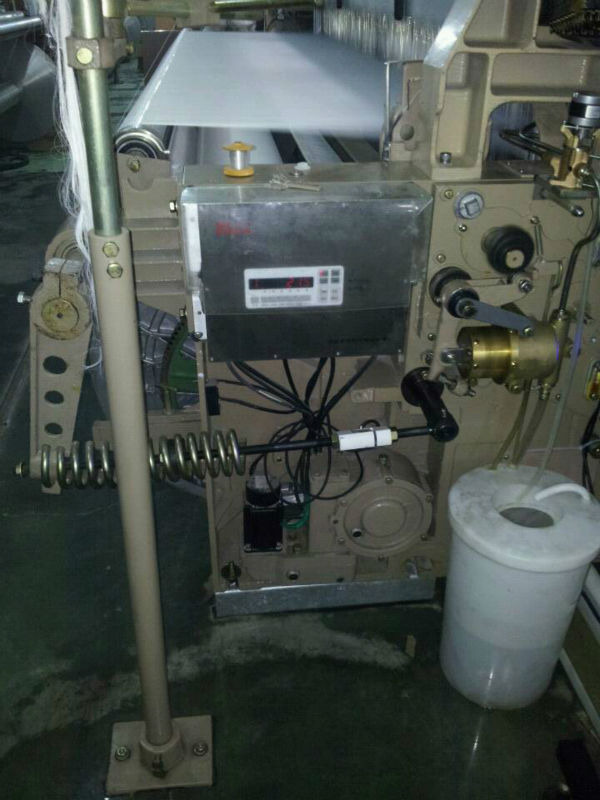

Competitive price fabric best quality water jet loom / textile weaving weaving machine

1 Set
MOQ
Competitive price fabric best quality water jet loom / textile weaving weaving machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: Used
Type: Water Jet Loom
Application: Cloth weaving
Production Capacity: 100%
Year: 1999~2002
Model Number: HCH 908T
Dimension(L*W*H): 4150mm*1740mm*1285mm
Weight: 2.2 ton
Power: 3.8kw
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
証明: ISO9001 CE
Loom color: red green brown
reed width: 135~380cm
Nozzle: MDH AWA
基本情報
証明: ISO9001 CE
Model Number: HCH 908T
お支払配送条件
Packaging Details: Plastic films and container tray
Supply Ability: 200 Set/Sets per Week
製品の説明

specifications:

1)Loom color :red green brown

2)Filling insertion ;one/two pump two /three /four nozzles are optional

3)Reed width :150,170,190,210,230,260,280,300,340,360cm

4)Head frame

a)Plain shedding:8 pcs max

b)Dobby shedding:16 pcs max

5) Weft density: 5 ~ 60picks/cm

6)Designed rotary speed :800 r.p.m
7)ETU-ELO is optional

8)workable width is 3-5cm reduce from the reed width

Yarn:

1)Nylon-6 filament

2)Nylon-6 non sizing

3)Polyester draw textured

4)Polyester high twisting yarn

5)Polyester high twisting yarn

6)Polyester poy

7)Polyester spun yarn

8)Polyester non-sizing filament

9)O.P yarn

10)Talon yarn

the best spare parts of our machine and the only pursuit is quality

Voice Goes Far in High Place ,Ride on the Crest of Success

Contact person :Davidliu

Skype:qdhaochunhui

QQ: 675207657

Mob:86 15898854325

Wechat:happylq12
