Weaving Loom Machine Cloth Fabric Roll Winding Machine For Weaving Roll Winder Used For Weaving Machine

1.0 piece
MOQ
Weaving Loom Machine Cloth Fabric Roll Winding Machine For Weaving Roll Winder Used For Weaving Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Weaving Factory, Textile Factory
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Bearing, Gearbox, Motor, Pressure vessel, Gear
Condition: New
Application: Weaving Loom Machine
Automatic Grade: Automatic
Production Capacity: According to actual condition
Memory Capacity: 1500mm (standard:1200mm)
Voltage: 380v, According to actual condition
Power: 0.25kw,50 Hz, 0.25kw,50 Hz
Dimension(L*W*H): as customized
Weight: 170 KG
Warranty: 1 Year

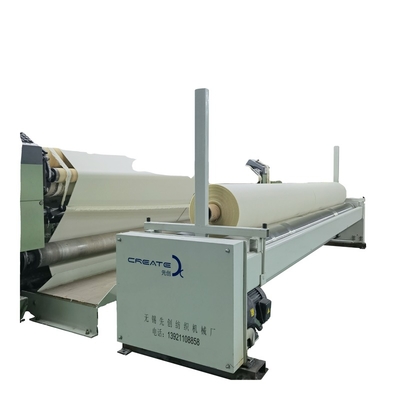

Product name: Horizontal Cloth Fabric Roll Winding machine for Weaving
Usage: Weaving Loom Machine
Dimension: As per customer's fabric width
Fabric Width: 1.2-4.5meters
Max winding diameter: 1500mm
Edge alignment Error: less than 5mm
Speed: Synchronized with Weaving Machines
Item: Fabric Roll Winder
基本情報
お支払配送条件
Packaging Details: Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)
Supply Ability: 100 Piece/Pieces per Month
製品の説明
Products Description
Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water
jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.
1.Less fabric waste and increase efficiency
2.Fast and easily handled, one operator can take care of multiple machines
3.High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.
4.Variable working width is possible

Main Technical Features

Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions
machine structure
* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.
* Non-slip foot pedal * Option - Inspection tablewith LED * Option - Man-machine interface operation mode * Option - Accurate length measuring giving accuracy of ± 0.01% * Option - Semi-automatic doffing device(pneumatic roll ejection device)
* Option - Manual doffing device(Manual roll ejection device) * Option - Automatic fabric selvedge shifter for thick selvedge.
* Option - Electric press roller lifting device designed for tighter cloth coiling
Horizontal Cloth Fabric Roll Winding machine for Weaving
Place of Origin
Jiangsu, China
Brand Name
Xianchuang
Warranty
The core components are guaranteed for 1 year
Applicable Industries
Weaving Factory, Textile Factory
Usage
Weaving Loom Machine
Power
0.25kw,50 Hz
Voltage
According to actual condition
Max winding diameter
1500mm (standard:1200mm)
Speed
Synchronized with Weaving Machines
Item
Fabric Roll Winder
